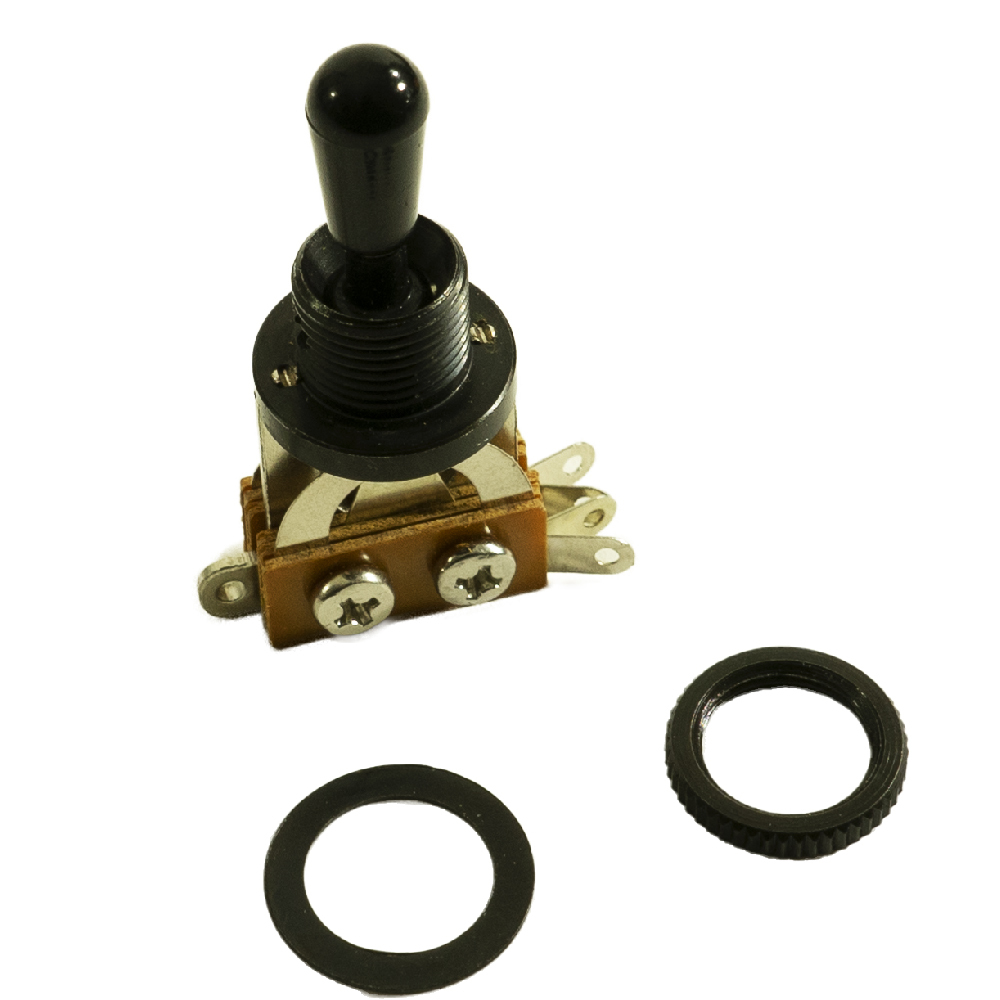

WD 3 Position Toggle Switch For Les Paul Style Guitars, Black with Black Plastic Tip

Features

WD Music Products® replacement toggle switch for Les Paul® style instruments. Metric threaded bushing and US threaded tip.

Our 3 pickup version allows you to replicate the 3 humbucker Gibson® Les Paul® Black Beauty wiring schematic. Although it does not allow for every switching option it does allow you to wire up to 3 pickups in either the original wiring pattern which offered a combination of bridge, middle+neck, and neck position options, or you could create your own custom combinations.

Specifications:

• Switch tip = 8-32 US thread
• Requires a 15/32 in. mounting hole (12mm)
• Threaded Bushing length is 3/8 in. (9.5mm)
• Thread type on bushing is 12mm -1.0 metric
• 24.38mm tall from base to top of switch
• 31.23mm wide from edges of contact points
