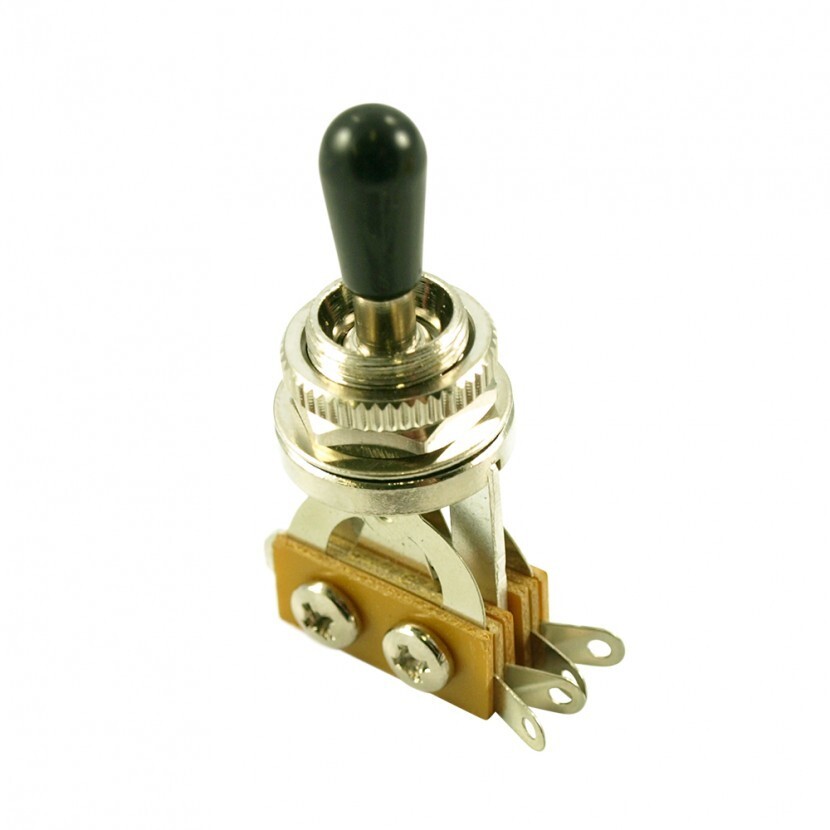

WD 3 Position Toggle Switch For Les Paul Style Guitars, Chrome with Black Plastic Tip

Features

WD Music Products replacement toggle switch for Les Paul style instruments. Metric threaded bushing and US threaded tip.

Our 3 pickup version allows you to replicate the 3 humbucker Gibson® Les Paul® Black Beauty wiring schematic. Although it does not allow for every switching option it does allow you to wire up to 3 pickups in either the original wiring pattern which offered a combination of bridge, middle+neck, and neck position options, or you could create your own custom combinations.

Specifications:

• Switch tip = 8-32 US thread
• Requires a 15/32 in. mounting hole (12mm)
• Threaded Bushing length is 3/8 in. (9.5mm)
• Thread type on bushing is 12mm -1.0 metric
• 24.38mm tall from base to top of switch
• 31.23mm wide from edges of contact points
